Form Templates Palette

The Palette

For the buttons and executable commands that are described n this section to work it is assumed that you have installed A WorkLife FrameWork™ and have loaded it.  This can be done either from the Load WorkLife Framework button on the supplied palette, by executing the command Needs["Diary`Diary`"], or by clicking on the following button:

By clicking on the on the Form Templates button on the All Palettes Palette, you will open the Form Templates Palette.  You can also open the Form Templates Palette by executing:

The Form Templates Palette allows you to create Templates that can be easily reused to paste into Notebooks.  The way that a template is created is to use the New Template button to name a template which is created from the current selection in the current InputNotebook.

The Form Templates Palette

The Palette Buttons

For the buttons and executable commands that are described n this section to work it is assumed that you have installed A WorkLife FrameWork™ and have loaded it.  This can be done either from the Load WorkLife Framework button on the supplied palette, by executing the command Needs["Diary`Diary`"], or by clicking on the following button:

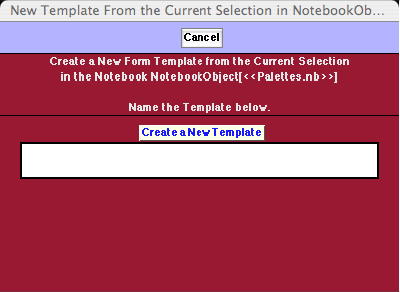

The New Template button opens the following dialog which is used to name the template that will be created from the current selection in the current InputNotebook.

The New Form Template Dialog

Opens and closes the Paste Form Template sub-palette that contains buttons corresponding to all of the templates that the user has created..

In this example there is a single template that has been named PaletteDoc.  This corresponds to a set of cells that will be pasted into the InputNotebook when the  PaletteDoc button is clicked on.
